nteract builds upon the very successful foundations of Jupyter. I think of Jupyter as a brilliantly rich REPL toolkit. A typical REPL (Read-Eval-Print-Loop) is an interpreter that takes input from the user and prints results (on stdout and stderr).

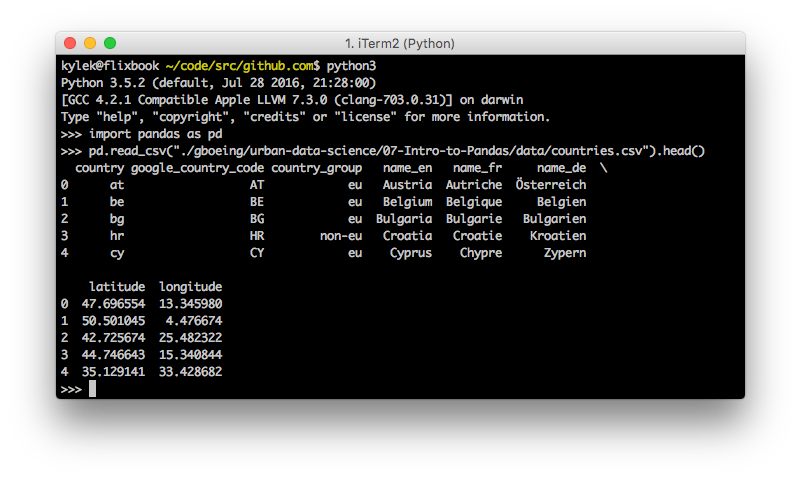

Here’s the standard Python interpreter; a REPL many of us know and love.

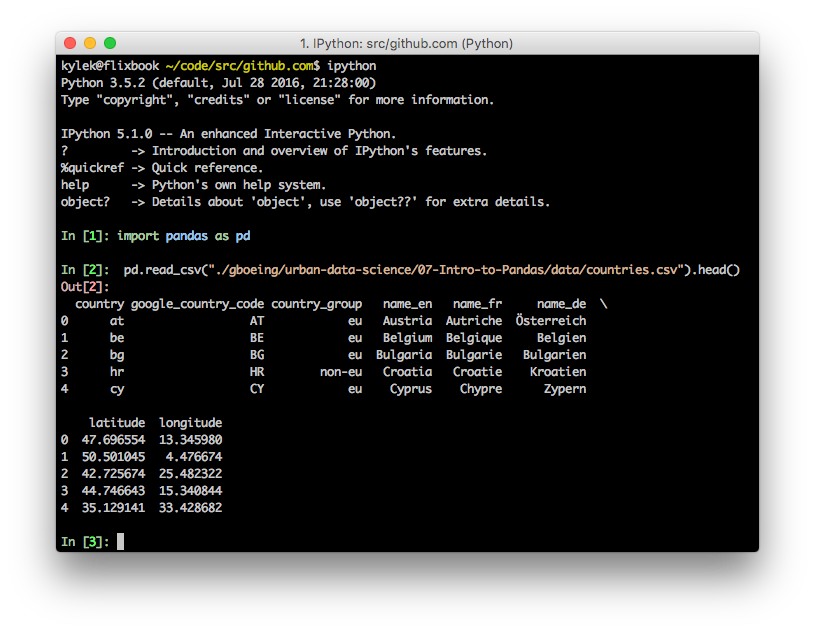

The standard terminal’s spartan user interface, while useful, leaves something to be desired. IPython was created in 2001 to refine the interpreter, primarily by extending display hooks in Python. Iterative improvement on the interpreter was a big boon for interactive computing experiences, especially in the sciences.

As the team behind IPython evolved, so did their ambitions to create richer consoles and notebooks. Core to this was crafting the building blocks of the protocol that were established on top of ZeroMQ, leading to the creation of the IPython notebook. It decoupled the REPL from a closed loop in one system to multiple components communicating together.

As IPython came to embrace more than just Python (R, Julia, Node.js, Scala, …), the IPython leads created a home for the language agnostic parts: Jupyter.

Jupyter isn’t just a notebook or a console.

It’s an establishment of well-defined protocols and formats. It’s a community of people who come together to build interactive computing experiences. We share our knowledge across the sciences, academia, and industry — there’s a lot of overlap in vision, goals, and priorities.

That being said, one project alone may not meet with everyone’s specific needs and workflows. Luckily, with strong support by Jupyter’s solid foundation of protocols to communicate with the interpreters (Jupyter kernels) and document formats (e.g. .ipynb), you too can build your ideal interactive computing environment.

In pursuit of this, members of the Jupyter community created nteract, a Jupyter notebook desktop application as well as an ecosystem of JavaScript packages to support it and more.

What is the platform that Jupyter provides to build rich interactive experiences?

To explore this, I will describe the Jupyter protocol with a lightweight (non-compliant) version of the protocol that hopefully helps explain how this works under the hood.

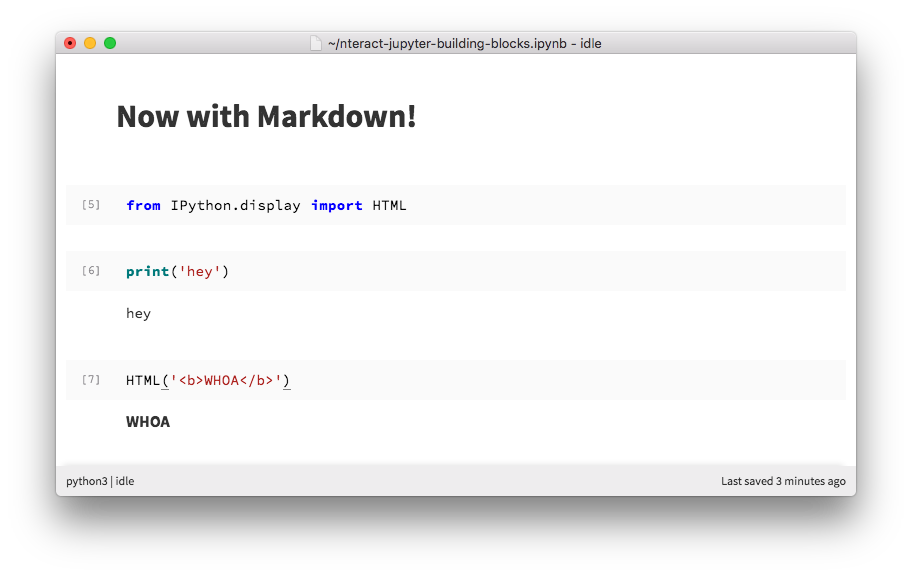

When a user runs this code, a message is formed:

{
  "msg_type": "execute_request",
  "content": {
    "code": "print('hey')"
  }
}

We send that message and receive replies as JSON:

{
  "msg_type": "status",
  "content": {
    "execution_state": "busy"
  }
}

{
  "msg_type": "stream",
  "content": {
    "text":"hey\n",
    "name":"stdout"
  }
}

{
  "msg_type": "status",
  "content": {
    "execution_state": "idle"
  }
}

We’ve received two types of messages so far:

• execution status for the interpreter — busy or idle
• a “stream” of stdout

The status tells us the interpreter is ready for more and the stream data is shown below the editor in the output area of a notebook.

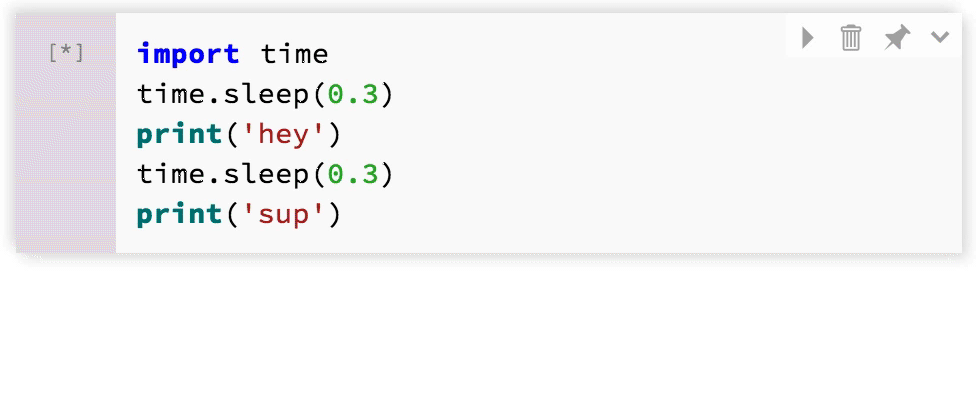

What happens when a longer computation runs?

{
  "msg_type": "status",
  "content": {
    "execution_state": "busy"
  }
}

{
  "msg_type": "stream",
  "content": {
    "text":"hey\n",
    "name":"stdout"
  }
}

{
  "msg_type": "stream",
  "content": {
    "text":"sup\n",
    "name":"stdout"
  }
}

{
  "msg_type": "status",
  "content": {
    "execution_state": "idle"
  }
}

As multiple outputs come in, they get appended to the display area below the code editor.

How are tables, plots, and other rich media shown?

Let’s send that code over to see

{
  "msg_type": "execute_request",
  "content": {
    "code": "pd.read_csv('sf-temps.csv').sample(n=5)"
  }
}

The power and simplicity of the protocol emerges when using the execute_result and display_data message types. They both have a data field with multiple media types for the frontend to choose how to represent. Pandas provides text/plain and text/html for tabular data

{
  "msg_type": "execute_result",
  "content": {
    "data": {
      // Full payloads below
      "text/plain": ...,
      "text/html":  ...,
    }
  }
}

text/plain

      temp                 date
4851  56.4  2010/07/22 04:00:00
6232  65.9  2010/09/17 17:00:00
8497  47.0  2010/12/21 02:00:00
5875  60.9  2010/09/02 20:00:00
5625  65.7  2010/08/23 10:00:00

text/html

<div>
  <table border="1" class="dataframe">
    <thead>
      <tr style="text-align: right;">
        <th></th>
        <th>temp</th>
        <th>date</th>
      </tr>
    </thead>
    <tbody>
      <tr>
        <th>4851</th>
        <td>56.4</td>
        <td>2010/07/22 04:00:00</td>
      </tr>
      <tr>
        <th>6232</th>
        <td>65.9</td>
        <td>2010/09/17 17:00:00</td>
      </tr>
      <tr>
        <th>8497</th>
        <td>47.0</td>
        <td>2010/12/21 02:00:00</td>
      </tr>
      <tr>
        <th>5875</th>
        <td>60.9</td>
        <td>2010/09/02 20:00:00</td>
      </tr>
      <tr>
        <th>5625</th>
        <td>65.7</td>
        <td>2010/08/23 10:00:00</td>
      </tr>
    </tbody>
  </table>
</div>

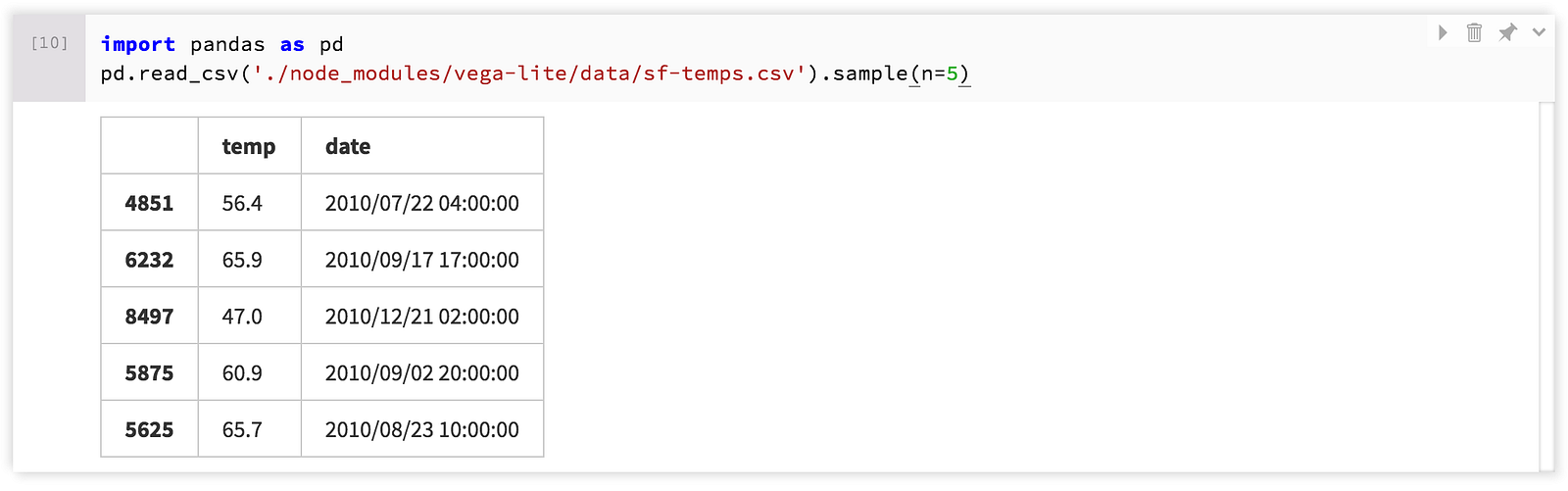

When the front-end receives the HTML payload, it embeds it directly in the outputs so you get a nice table:

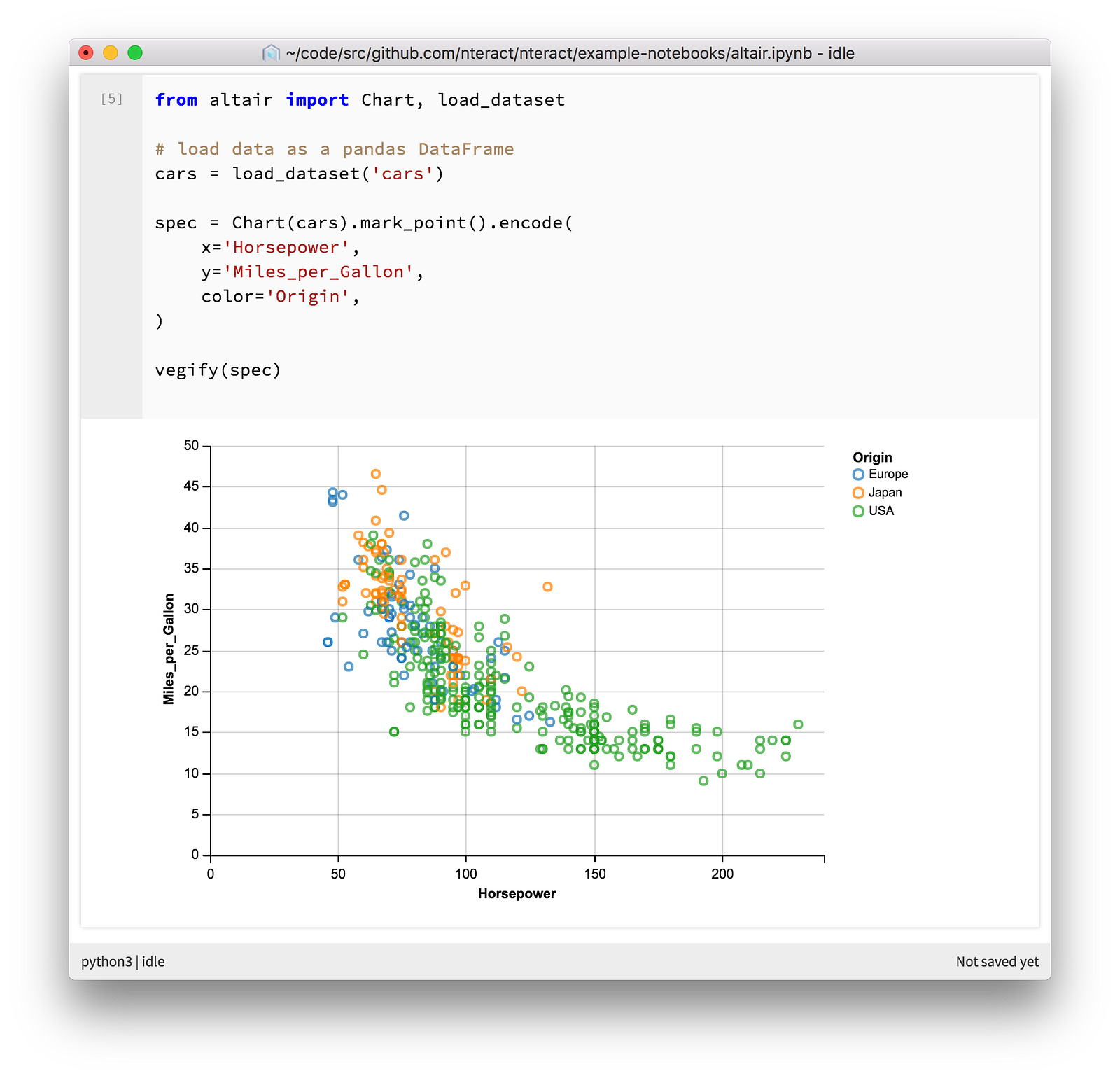

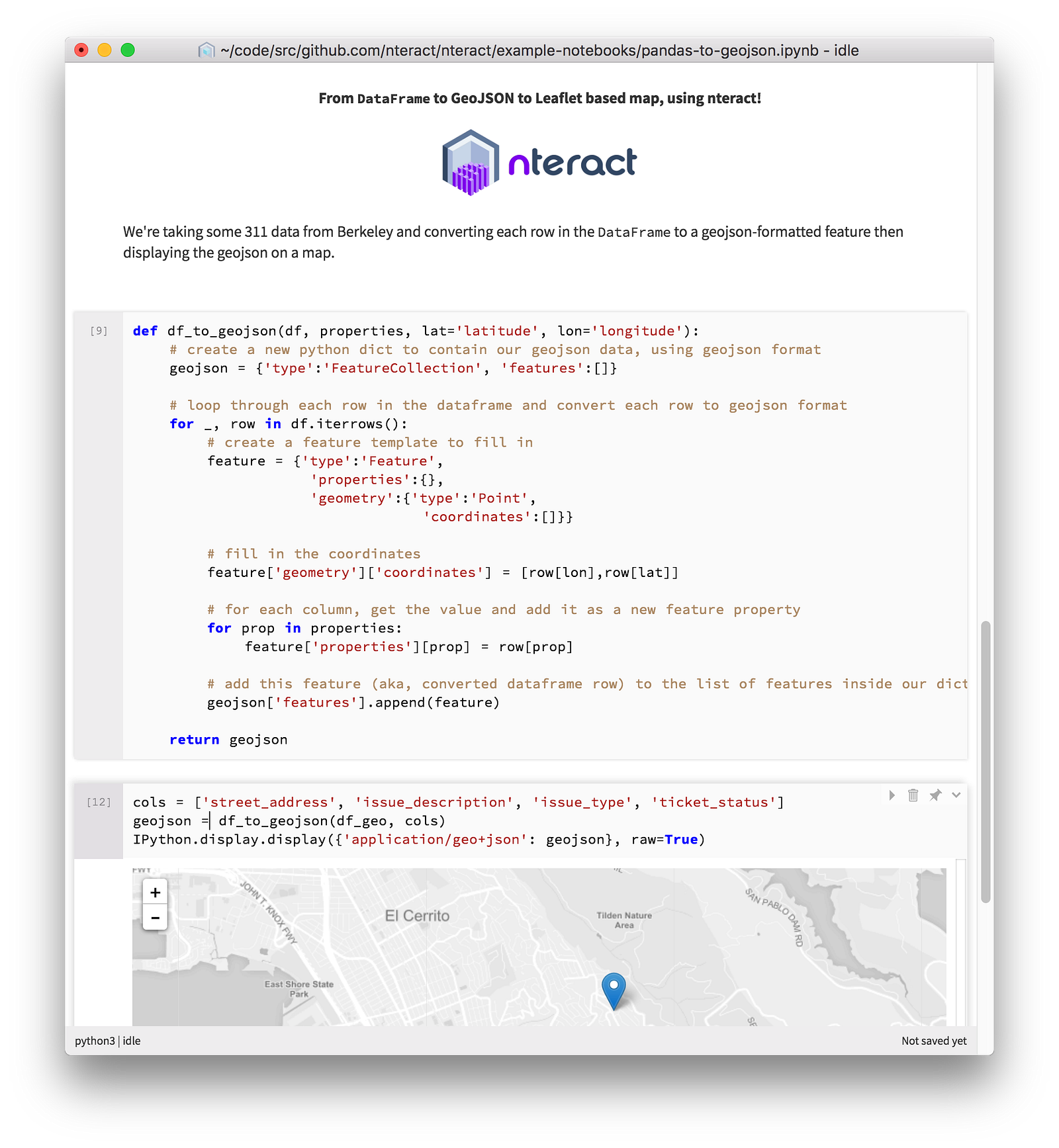

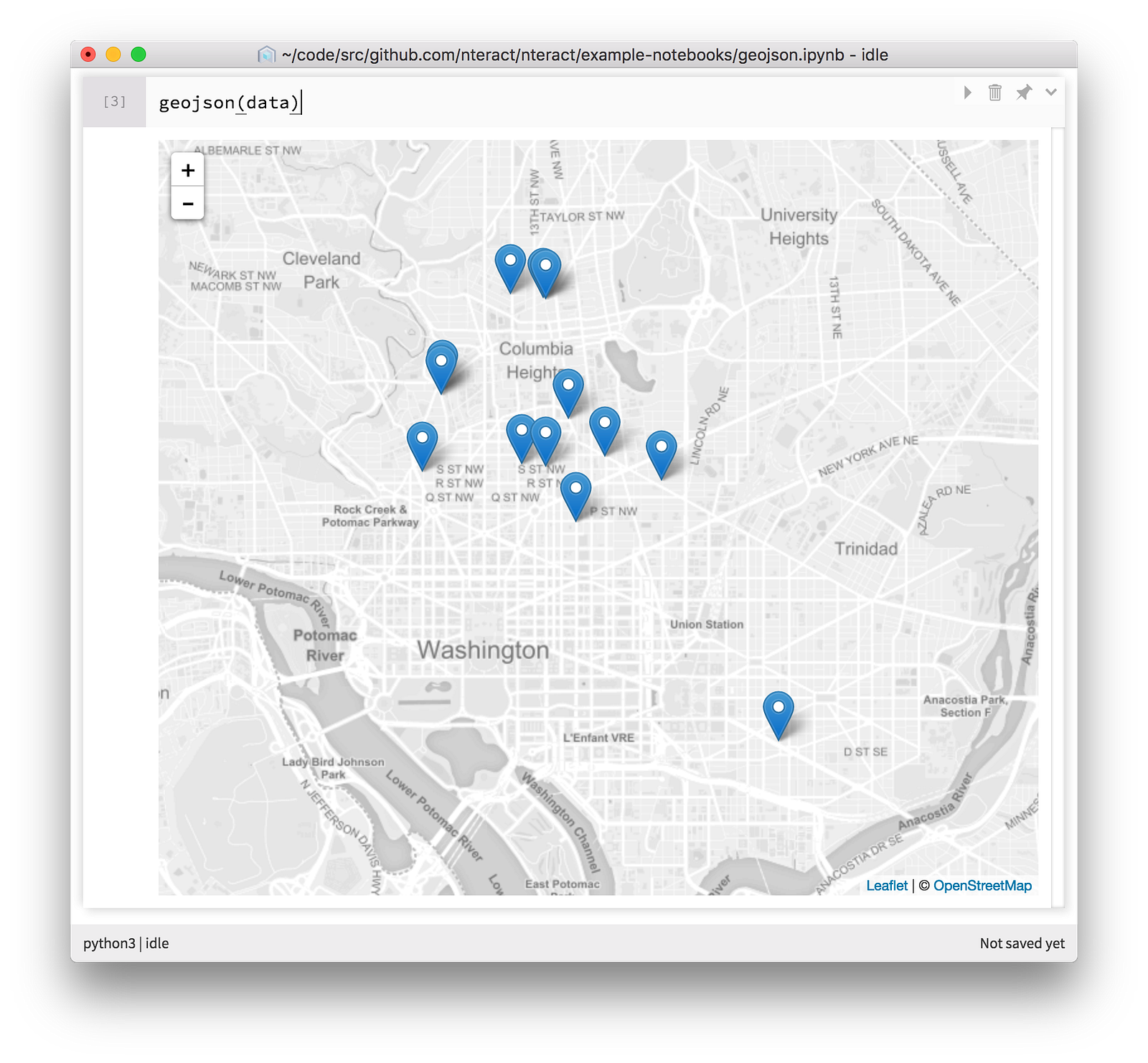

This isn’t limited to HTML and text — we can handle images and any other known transform. The primary currency for display are these bundles of media types to data. In nteract we have a few custom mime types, which are also coming soon to a Jupyter notebook near you!
